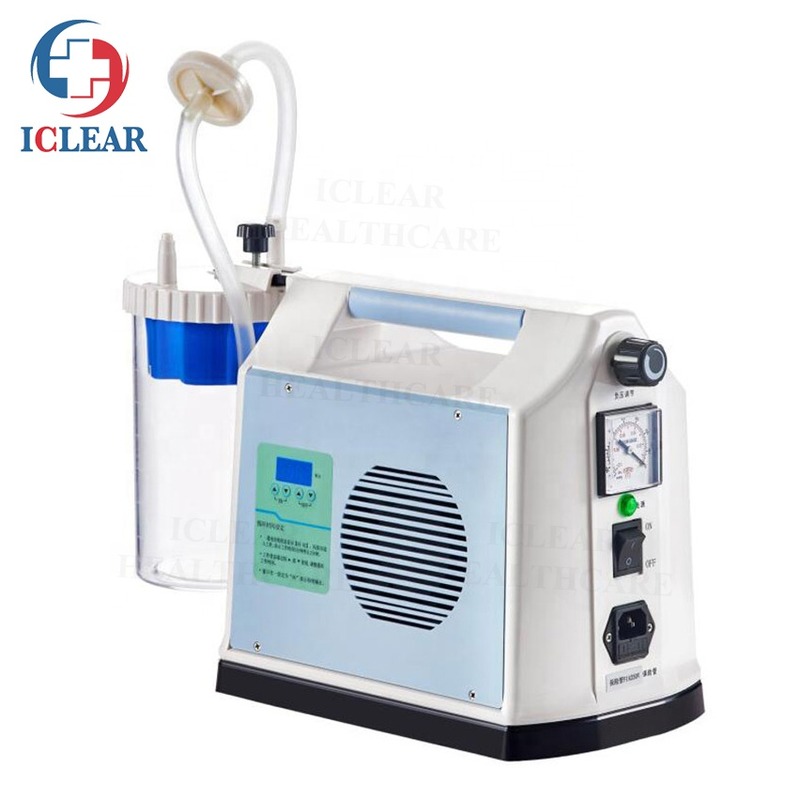

Portable Medical Metal Negative Pressure Phlegm Suction Device

Portable Medical Negative Pressure Phlegm Suction Device

CHS-VSD30

It is a kind of suction machine with middle negative pressure and high flow that is designed by integrated with circuit and sensor control technology. The function is vacuum drainage that treating on the surface of wounds and ulcers with professional dressing, it is also applied to continuous drainage surgery. It is applied to the patients in the hospital and home for sputum suction. NOT for abortion aspiration.

Work beside the bed without noise.

There are two work models: continuity and intermittence. The work time of intermittence is optional[5mins(ON)/2mins(OFF)].

It can work continuously for a long time.

Set the value of negative pressure optionally, and the value is constant and reliable.

Equipped with an overflow protection device for reducing the pollution of the pump.

The relief valve is used for releasing negative pressure from high to low.

Technical index:

Mode: intermittentence / continuation

Suction pump: piston pump (imported pump)

Display: show the vacuum pressure on the screen/set the parameter/alarm parameter/operating time

Alarm: high pressure/low pressure/hydro fuel

Limited negative-pressure: ≤0.06MPa

Negative-pressure adjustment range: 0.02MPa~limited negative-pressure

Pumping speed: 20L/min

Time adjustment: running time: 01~10min

internal time: 01~10min

default time: 5min(ON)/2min(OFF)

Reservoir: 1000ml

Noise: ≤55dB(A)

Power: ~220V 50Hz

Input rate: 105VA
